HLP2 Cigarette Packing Machine Line,Hard box Hinge Lid Packer,WRAPPER MACHINE , BOXER MACHINE , Over Wrapper Machin

HLP2 Cigarette Packing Machine Line,Hard box Hinge Lid Packer,WRAPPER MACHINE , BOXER MACHINE , Over Wrapper Machin

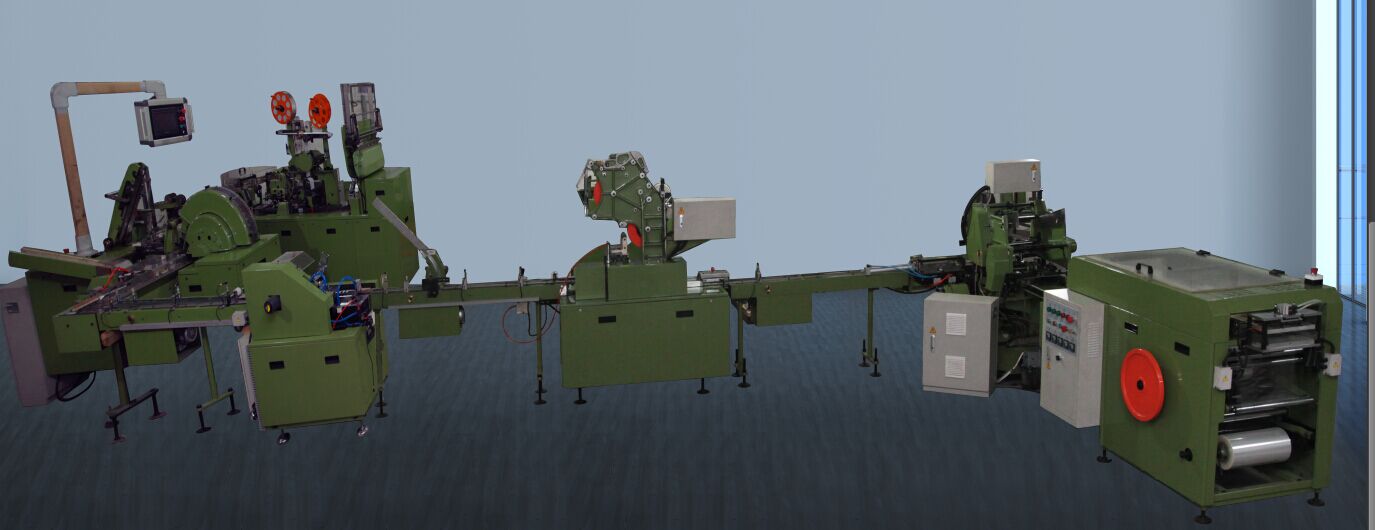

Hlp2 Cigarettte Packing Line:This packing line is mainly composed of four single machines:HLP2N Cardboard Packet Packing Machine,YB59 Packet Film Packing Machine,YB69 Carton Packing Machine and YB99 Carton Film Packing Machine.It is used for the whole process of packet packing, packet film wrapping,box packing and box film over wrapping.



MAIN PARAMETER

1.Rated Capacity:18 cartons/min
2.Packing Specification(king size)
Collation:7-6-7
Specification of cigarettes(length*perimeter):84mm*24.5mm
Specification of packet(L*W*H):87.5mm*56mm*23.5mm
Specificatiion of carton(L*W*H):283mm*89mm*48mm
Note:Packing specifications can be adjusted according to the clients' needs.
3.Rated Power:9.44kw
4.Dimension(L*W*H):7000mm*6500mm*1820mm
5.Net Weight:5880kg



Parameters:



48m3 / h , 0.60mpa  Cigarette Packing Machine for Wapper




Item

Wrapper

1.Max Speed

180-180 Packets/Min

2.Working Speed

180-180 Packets/Min

3.Text Displays

HLP2

4.Technical Documents

English only

5.PLC

Siemens

6.Ambient Temp

25±5℃

7.Ambient RH

55%～65% RH

8.Color

Green

9.Year two class preparation

According to user needs to order

10.Compressed Air Needs

pressure     >0.60Mpa
flow         >48m3/h

11.Diameter Supply Line

Inside diameter 8-10mm hose

12.Power

380 V, 3 Phase 60 HZ

13.Connected Load

3.6KW

14.Safety Loop Voltage

24 Volt

15.Need for Neutral Wires

Yes

16.BOPP

1. nature: Polypropylene BOPP for heat-sealed, can be stretched in vertical two ways. The specification should conform to the Nation Standard GB/12026-89.

2. dosage       19-23g/ m2

3. width          118mm

4. diameter of bobbin core  ∮75

17.Tear strip

1. Nature of Anti-stretch is strong, force of break no less than 10N, plain and straight, without spirals.

2. width       2.5mm

3.diameter of core  ∮28mm

4. dosage     40-70g/ m2

18.Size

87.5×56×23.7mm
