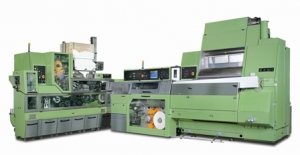

MK9 Cigarette Making Machine With MAX-S Assembling Machine.This combination consists of three machines: MK9 cigarette maker, MAXS plug assembler and HCF80 tray filler. It can be customized to produce king size cigarettes, super slim cigarettes or kreteks with different size. The cigarette weight can be inspected and the bad cigarettes can be rejected online automatically. Highlights: 1. The cigarette cutting system uses the double-knife single-cutting system with lower-rise temperature and lower noise. This gives the very good quality of the cigarette cut. 2. The complete suction system and high air pressure system . 3. The hopper system adopts AC servo motor to directly drive the tobacco cutting system. The timing belts are used instead of the gears, so the even tobacco-feeding is greatly improved and the maintenance cost is reduced as well. 4. It adopts AC servo driving system that simplifies the mechanical structures and reduces the failure and maintenance cost, and improves the transmission precision. 5. Electric control system: ◆ control center: it adopts the SIEMENS PLC S7-300 series. ◆ weight controller: the microwave weight control system is adopted to avoid any harm to people. ◆ man-machine interface: The SIEMENS touch screen provides friendly man-machine interface, which displays the machine status and production data precisely. It is also convenient to modify the system parameter and check out the failure. Parameters Output 5000cig/min (Normal Size)3500cig/min (super slim/Nano) Frequency 50Hz Total power 50KVA Cigarette parameter Outside dimensions Filter-cigarette length 65 ~110± 0.5 mm Cigarette maker 3630× 1270 × 1870mm Tobacco rod length 55 ~90 mm Plug assembler 3340×1340× 1820mm Cigarette diameter φ 5.4 ~φ 9.0 mm Tray Filler 2350×2400× 2100mm Power supply 380V ± 10%(3phases) Total weight 8600kg Making Process Requirements: 1. Ambient conditions Temperature 20ºC--30ºC Relative humidity 62%--68% 2. Paper bobbin Tensile strength ≥0.85KN/m Extensibility >1.6% Humidity 6%±1.5% Joint number <1/1000 m 3. Width 48±0.3 mm Thickness 0.04mm~0.05 mm 4. Cut tobacco Grade A Humidity 12.5%±0.5% 5. Compress air 5.5bar 6. Viscosity of VPA For the maker 2500mPa.s-5000mPa.s For the assembler 5000mPa.s-10000mPa.s
